4 pin DC power plug for lcd TVs.
These are a little akin to something
you might find in kinder egg as first sight but are quite easy to put on.

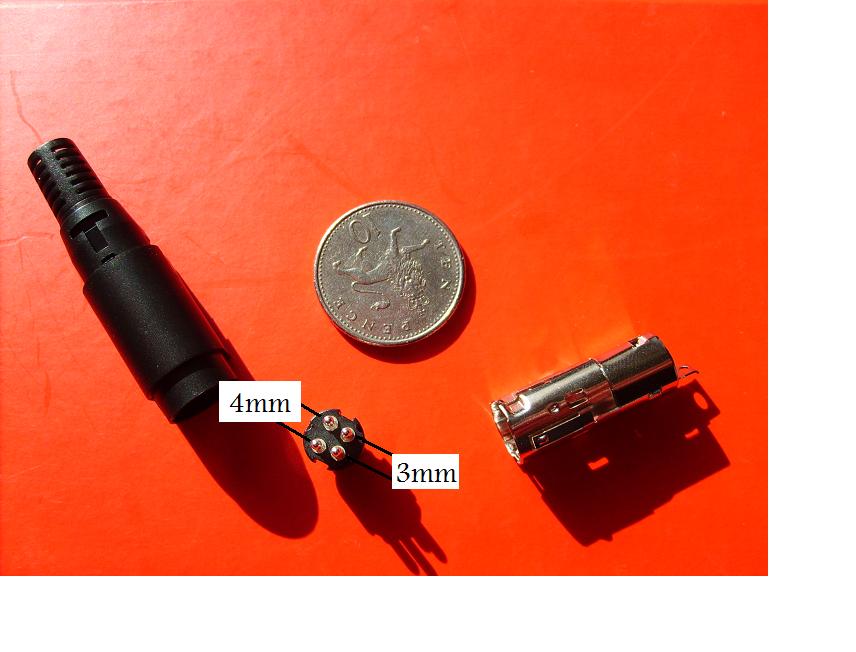

Observe the diagram
provided.
Wiring:
- All 4 possible combinations are used. All TVs are
different.
- However only 2 out of the 4 pins are used. 2pins ground - negative,
2 pins positive.
- Connect a multimeter to the ground of the TV ie any metal part that you
can find including the Aerial socket. Find which pins 'shorts' between the
ground and which two pins, then connect those two to the negative and the
other two to positive - simple. You can pop the power pack if you do not do
this properly.
To buy a plug:
£3.49 inc p+p
